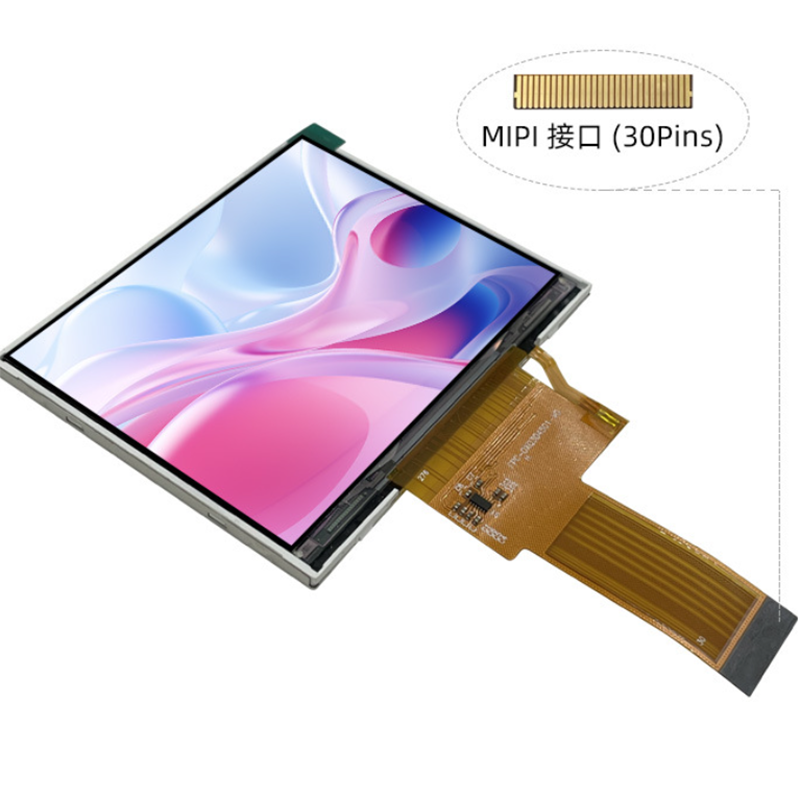

3.45inch horizontal lcd screen

3.45inch 640*480 horizontal lcd screen

Product size: 3.45-inch TFT LCD
Resolution: 640*480
Overall dimension of module: 76.2(W) * 63.2 (H) * 3.07 (T) mm
Display area AA size: 70.08 (W) * 52.56 (H) mm
Operating temperature: – 20 ℃ – + 70 ℃
Storage temperature: – 30 ℃ – + 80 ℃
Display mode: full color IPS
Backlight mode: LED
Touch screen (TP): capacitive touch or resistive touch screen
Interface mode: Mipi

3.45inch horizontal lcd screen

Fill out this field
Please enter a valid email address.
Fill out this field

Download

Engineering Drawing

Specification

Package Specification

General Specifaction
