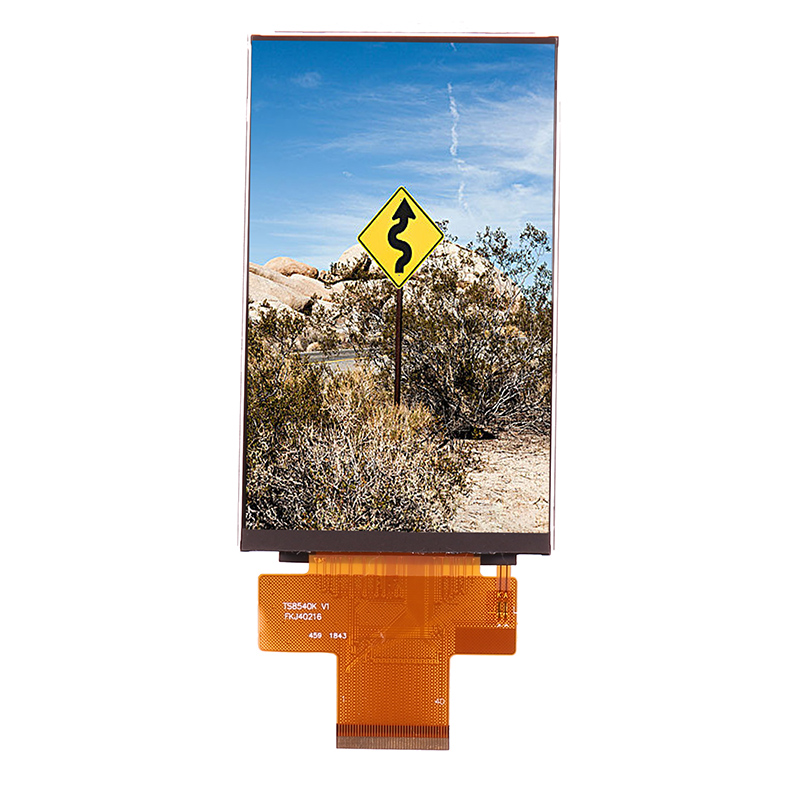

3.0inch tft lcd screen 480X800 or 480X854

3.0inch IPS LCD Sceen with 480*800 or 480*854dots

Product size: 3.0-inch TFT LCD
Resolution: 480*(RGB) *800/854
Overall dimension of module: 73.7 (W) * 43.00 (H) * 1.7 (T) mm
Display area AA size: 64.8 (W) * 38.88 (H) mm
Operating temperature: – 20 ℃ – + 70 ℃
Storage temperature: – 30 ℃ – + 80 ℃
Display mode: full color IPS
Connection mode: welding \ plug \ connector
Backlight mode: LED
Touch (TP): capacitive screen \ resistive touch screen
Interface mode: RGB / Mipi / MCU
